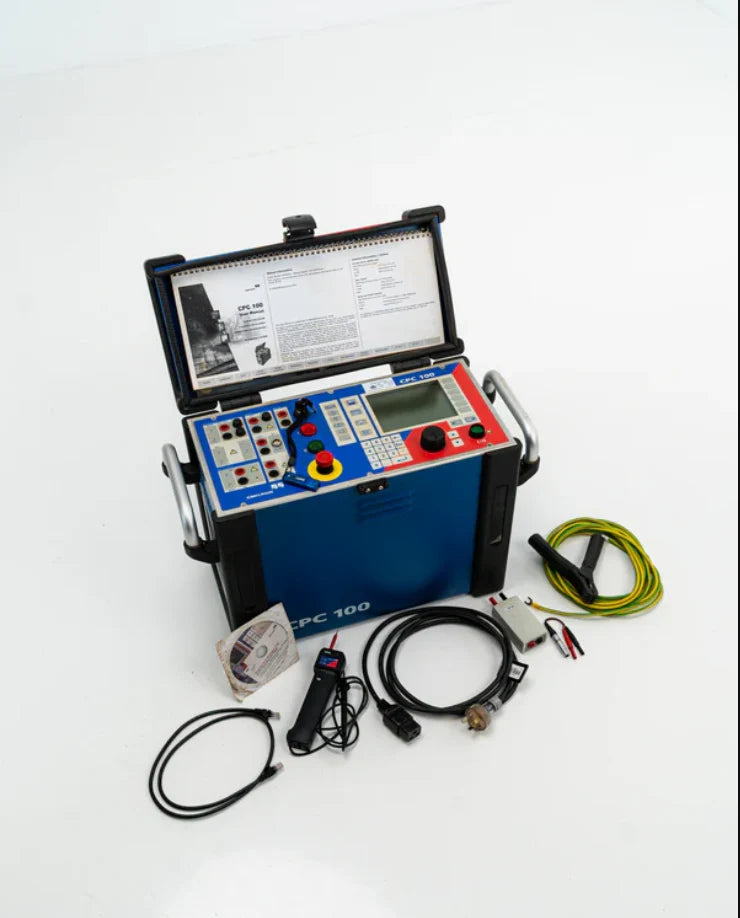

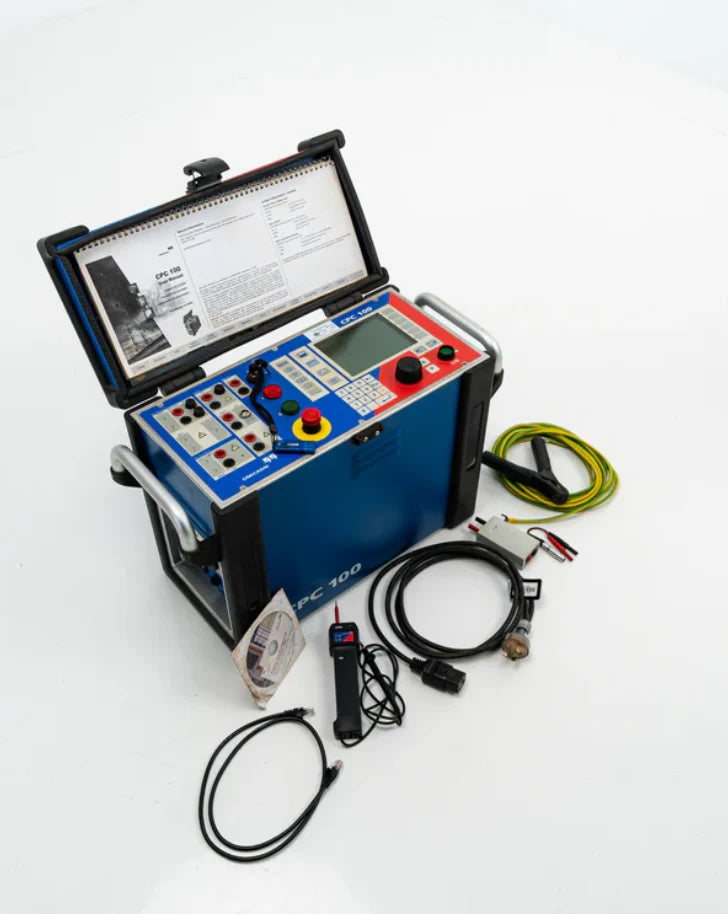

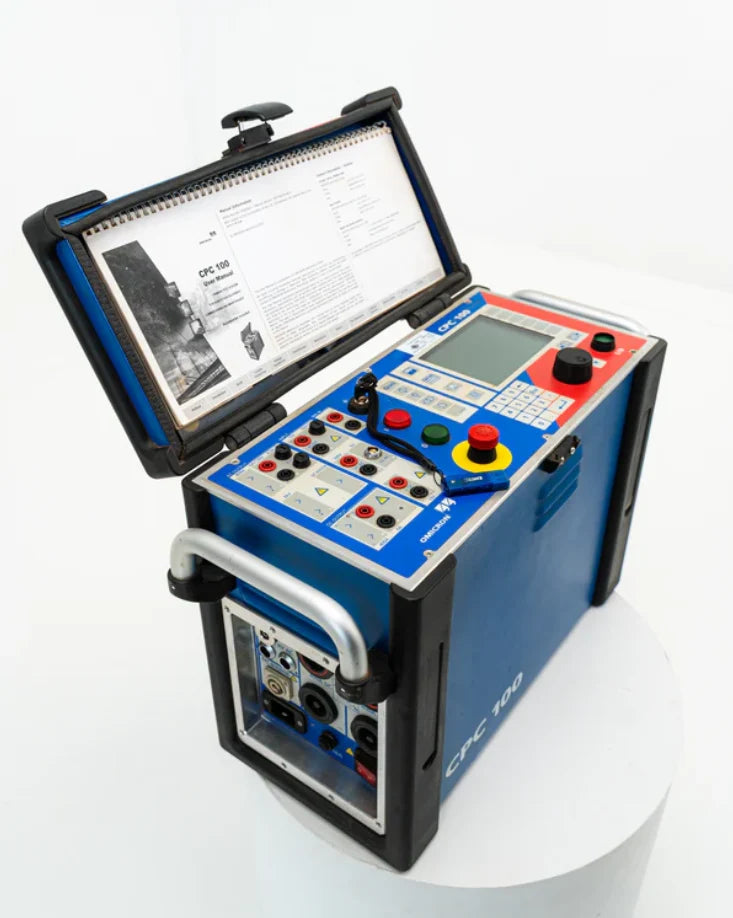

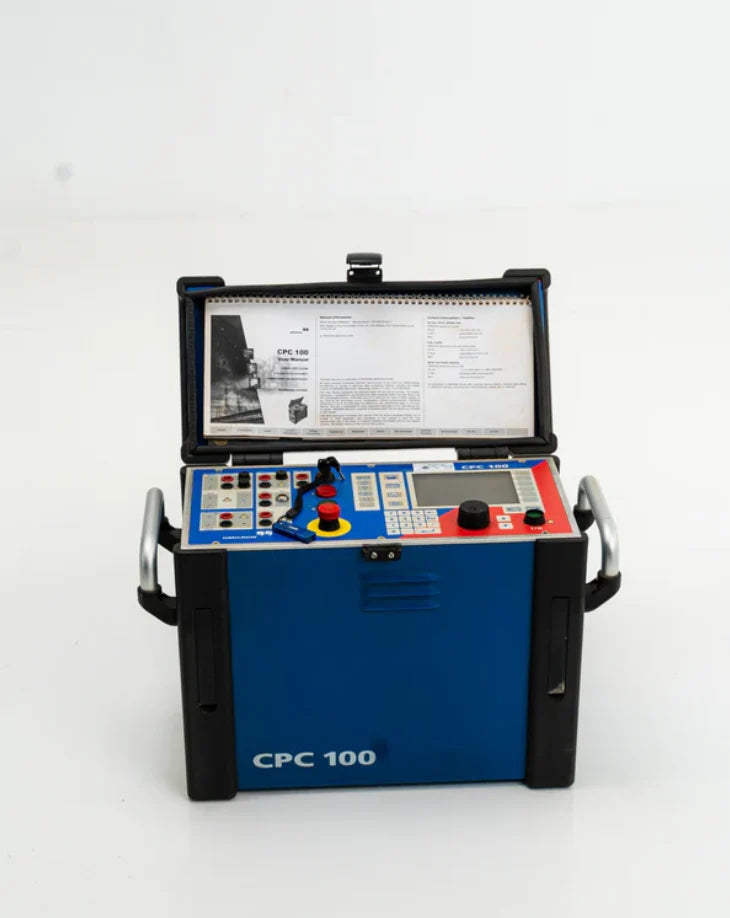

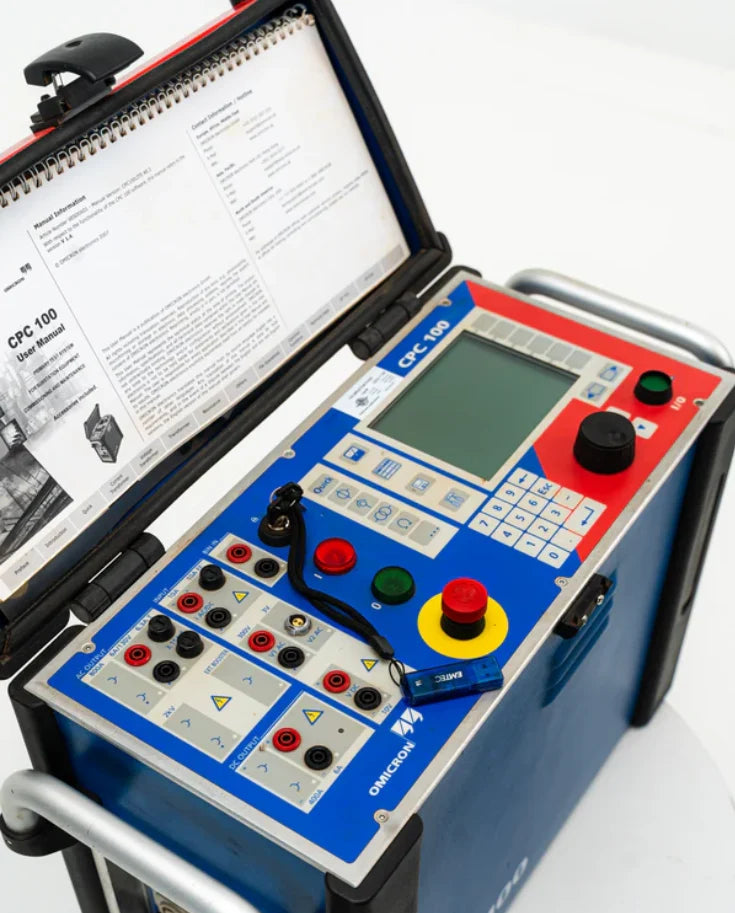

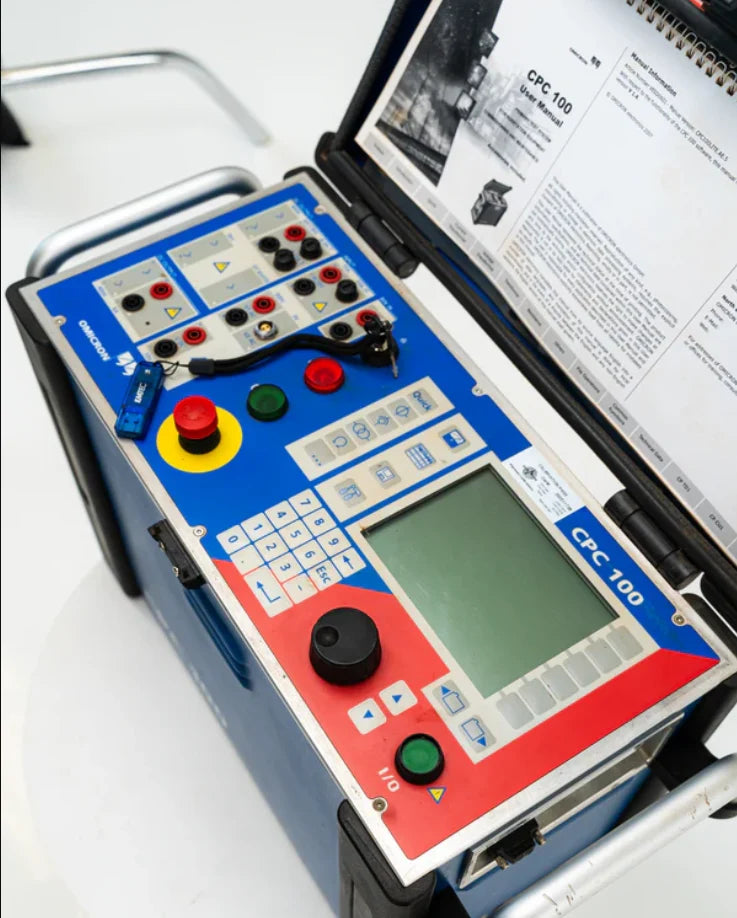

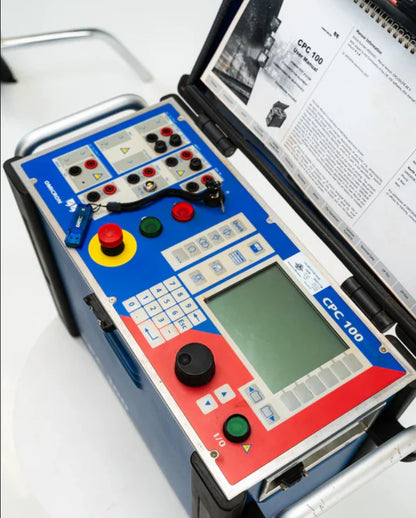

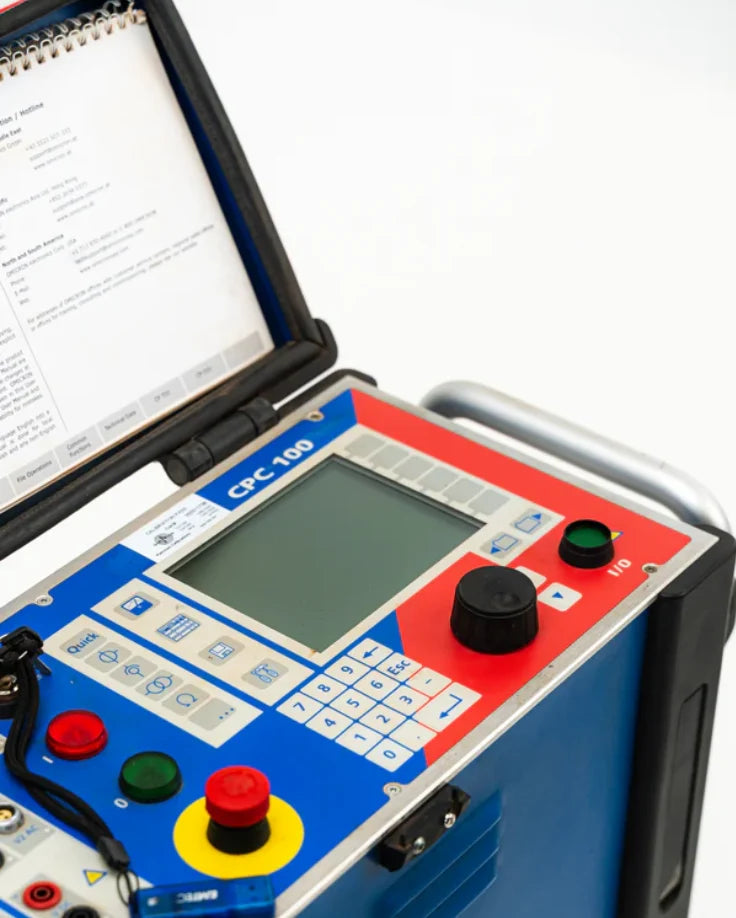

OMlCRON CPC 100 Primary Injection Test Set

Make/Model: OMICRON CPC 100

Product Overview
A compact and multifunctional primary injection test system, replacing multiple individual devices for streamlined substation testing and diagnostics.

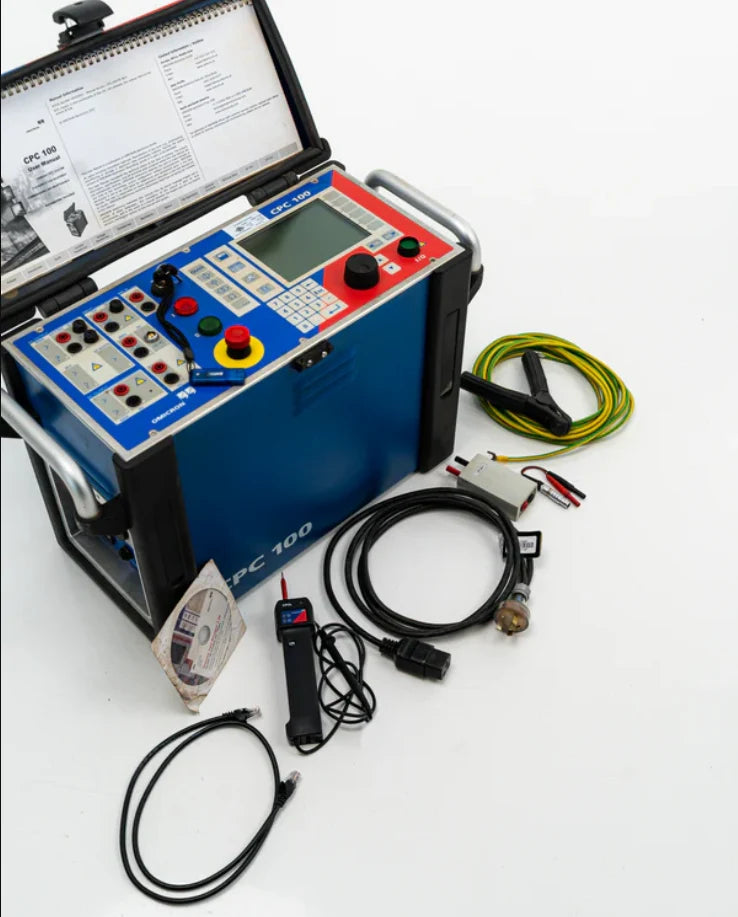

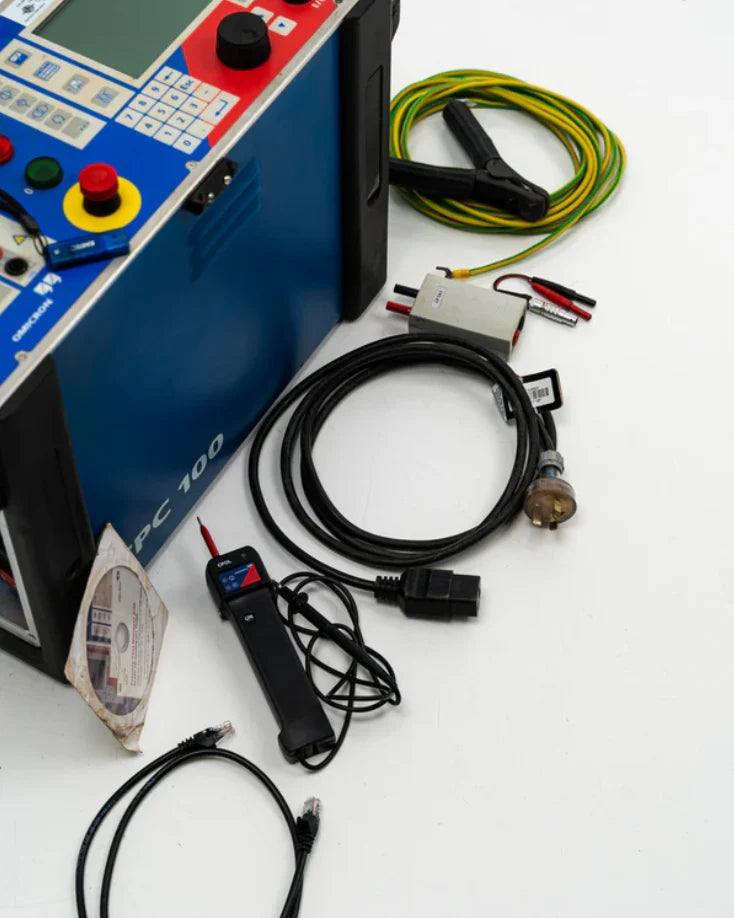

Included Equipment:

• CPC 100 test unit (29 kg)
• Optional boosters (current or voltage)
• Software: Primary Test Manager (PTM), mobile companion (PTMate)

Technical Specifications:

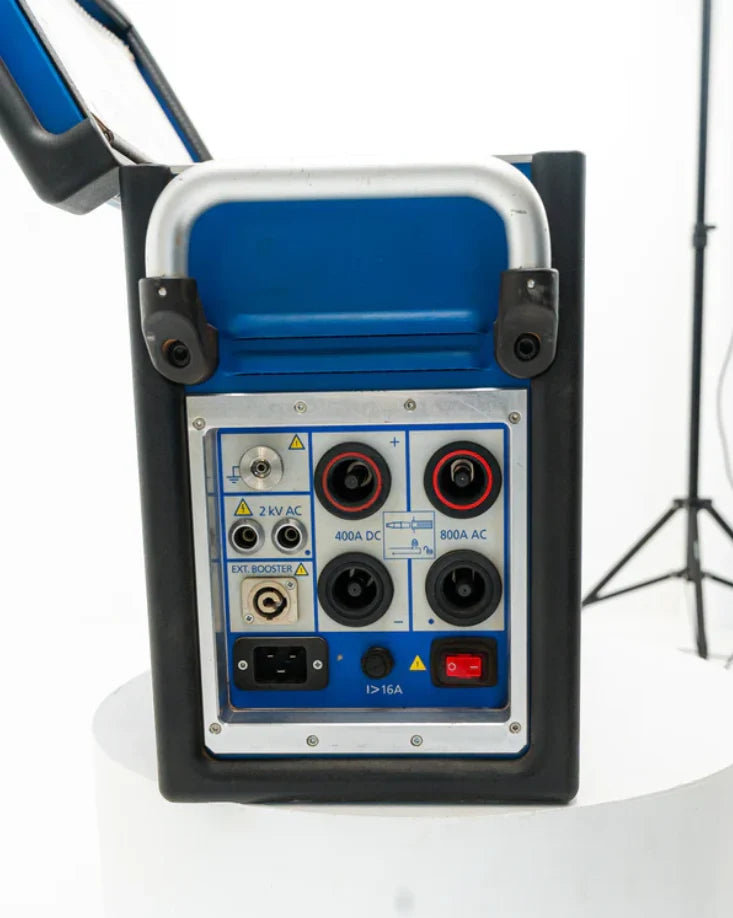

• Output: Up to 800 A or 2 kV (extendable to 2 kA or 12–15 kV with boosters)
• Power: Up to 5 kVA
• Frequency: 15 Hz–400 Hz (AC), up to 400 A DC
• Features: Compact design, high noise suppression, templates & auto-reporting, safety-rated (IEEE/IEC)

Applications

• Testing of CTs, VTs, transformers, lines, grounding, rotating machines, and circuit breakers
• Substation commissioning and maintenance diagnostics
